Schematics & Plans
What's in a Schematic?
When you purchase a "Schematic" from us, you are buying a comprehensive digital package for your DIY project. This is what's included:
- ESPHome Configuration: One or more YAML files to integrate your project directly into Home Assistant.
- Gerber Files: An archive ready for you to upload to any PCB manufacturer to order your own boards.
- 3D Print Models: STL files for 3D printing custom enclosures and boxes for your project.
- Documentation: PDF files including setup guides, diagrams, and instructions.
- Bill of Materials (BOM): A complete list of all components needed to build the project.
Please Note: A Schematic is a digital-only product. It does not include the physical PCB or any components.
If you want the physical parts, please purchase the corresponding Kit instead. All Kits include the physical components AND full access to all the digital files from the schematic.

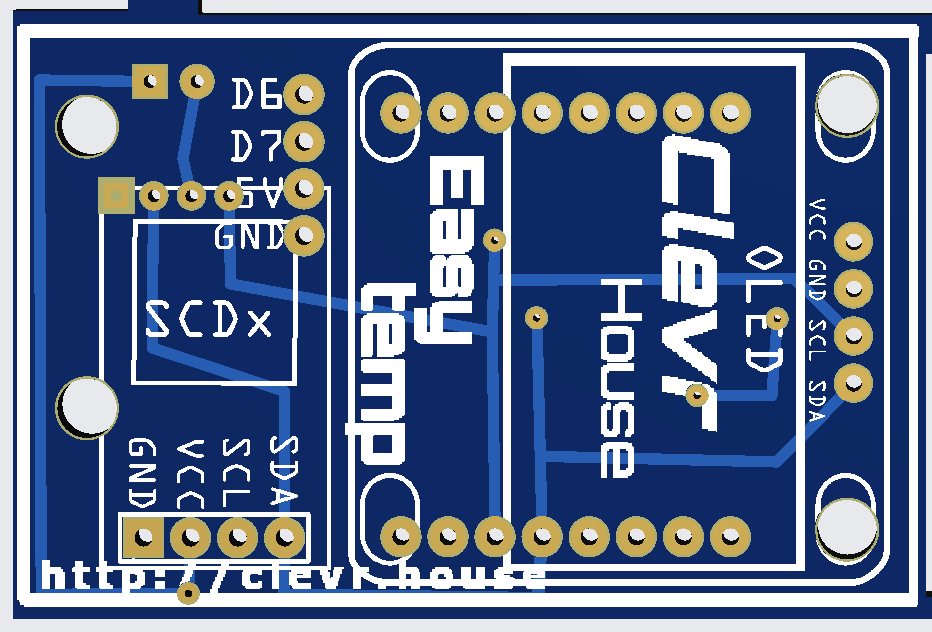

Wemos D1 Mini ESP8266 and DHT22 Temperature sensor
This schematic show how to connect an DHT22 sensor to a Wemos D1 Mini. It includes breadboard design...

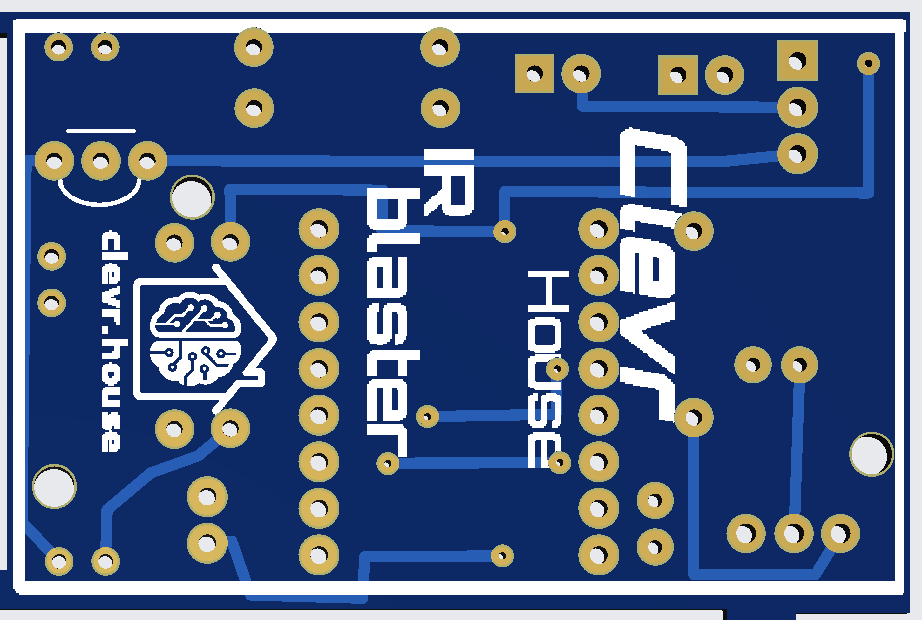

Clevr IR Blaster - 3 x IR Emitter LEDs
Tired of the remote control chaos on your coffee table? The constant search for the right remote for...

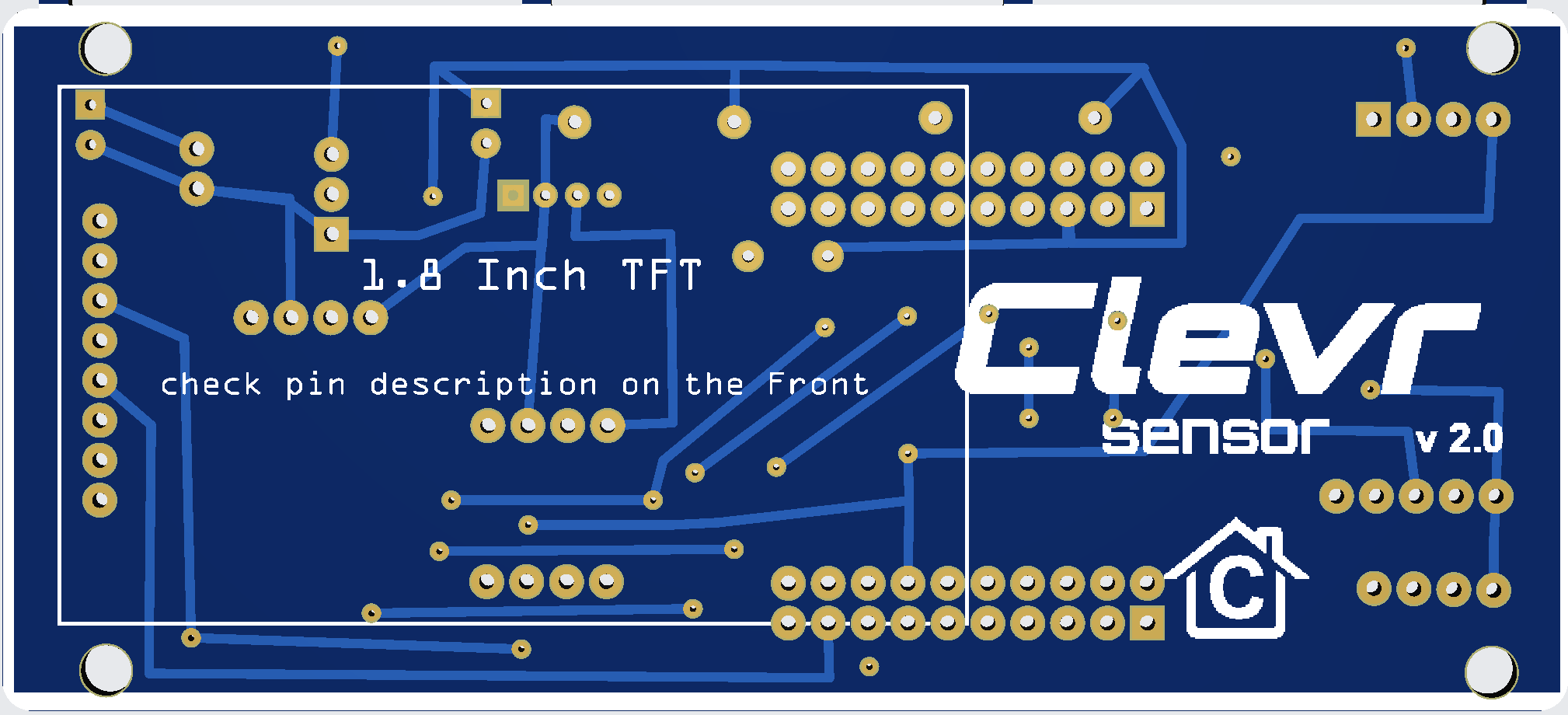

Compact Smart Air Sensor PCB
All-in-one mini smart sensor board for temperature, humidity, pressure & CO₂ — compact, ...
The Definitive DIY Air Quality Station: AirGuardian Vision Pro
You asked for the ultimate data-gathering tool, and we delivered. Now, take the next step. Go beyond...
The Ultimate DIY Air Quality Monitor: Breathe Smarter, Live Healthier
Are you truly aware of the air you breathe indoors every day? The air inside our homes and offices c...
Automating IKEA Fridans roller blinds with Home Assistant (or even without it)
This Schematic contains all the details needed to create an inteligent roller blind from the regular...
Build a Smarter Radiator Fan Controller / Heat booster with This ESP32-C3 Design
Unlock the full thermal potential of your heating system with this intelligent, automated fan contro...
