Pro-Grade WLED Controller 12V - 4 zone or 2 zone - Ultimate Flexibility

Advanced 12V WLED Controller Schematic: The Ultimate in Flexibility



Take your LED installations to the next level with our Advanced 12V WLED Controller. Built around the powerful and user-friendly ESP32-WROOM-32 development board, this schematic is engineered for maximum performance, stability, and unparalleled user choice.

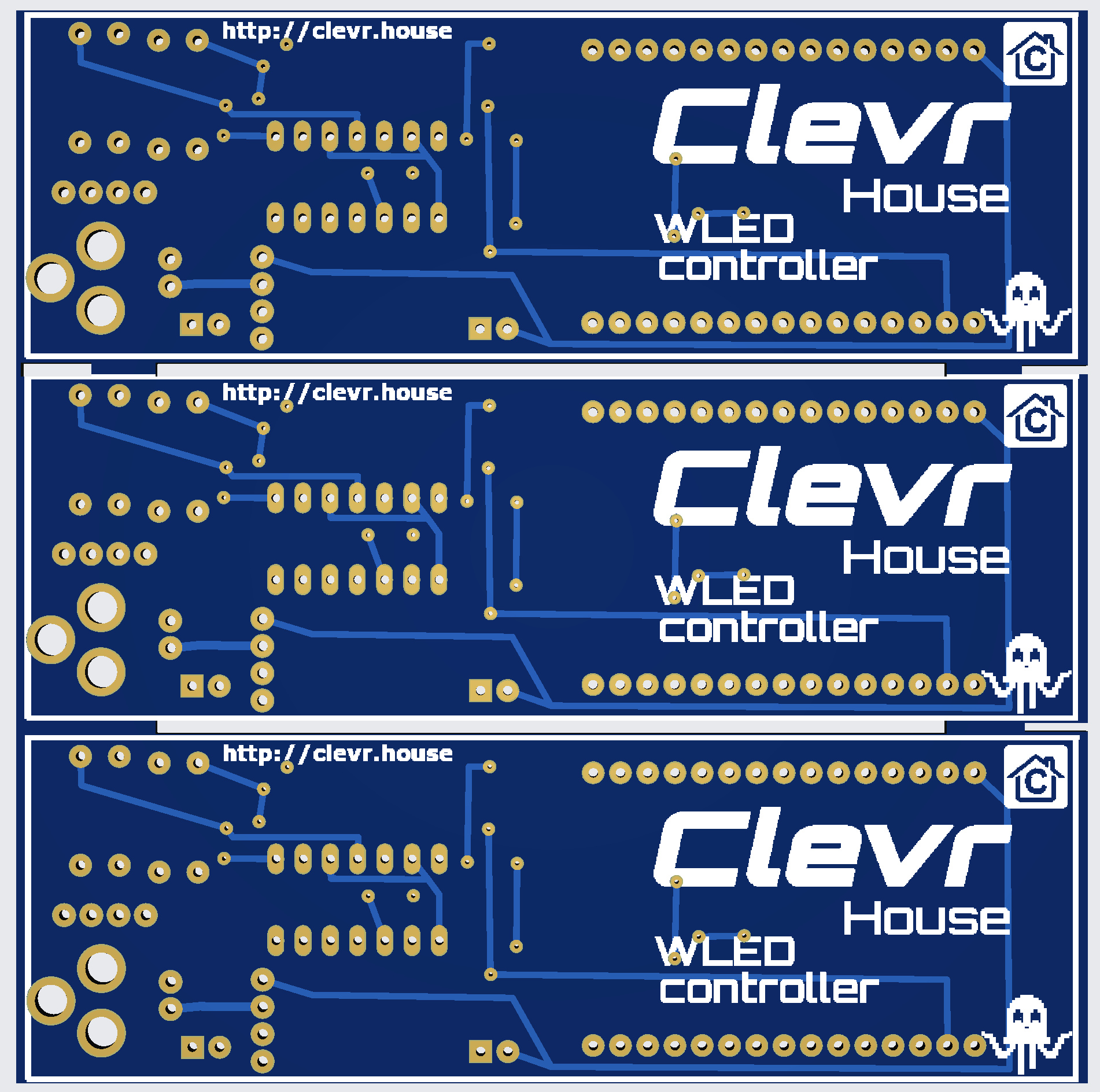

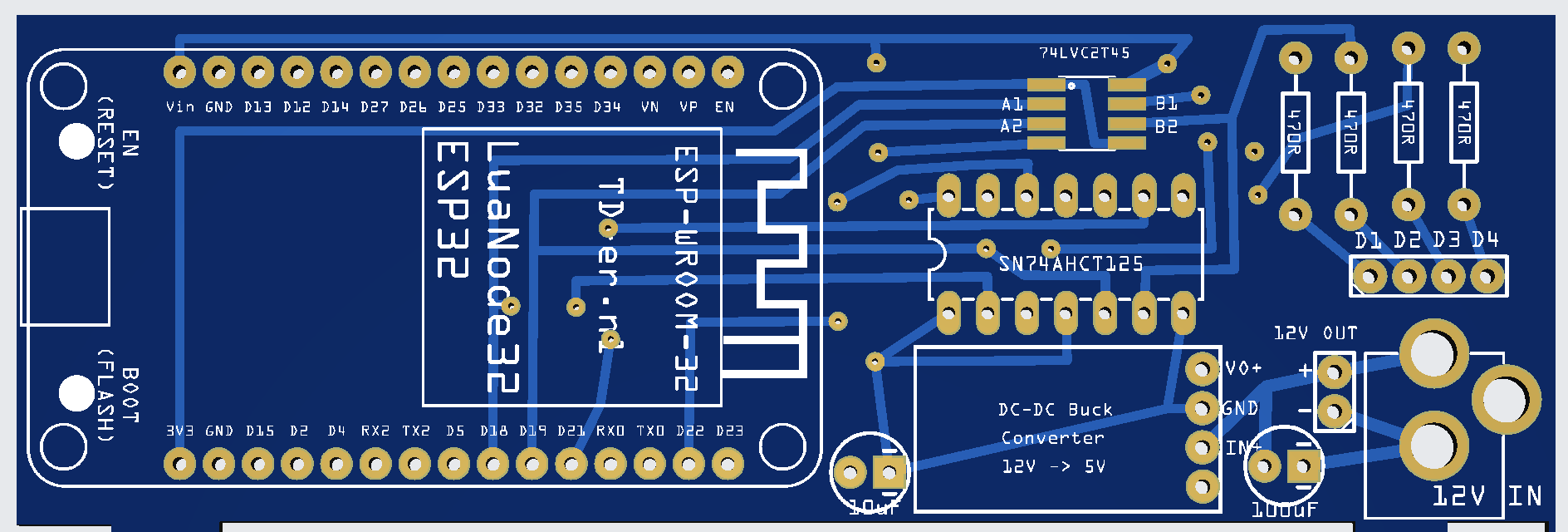

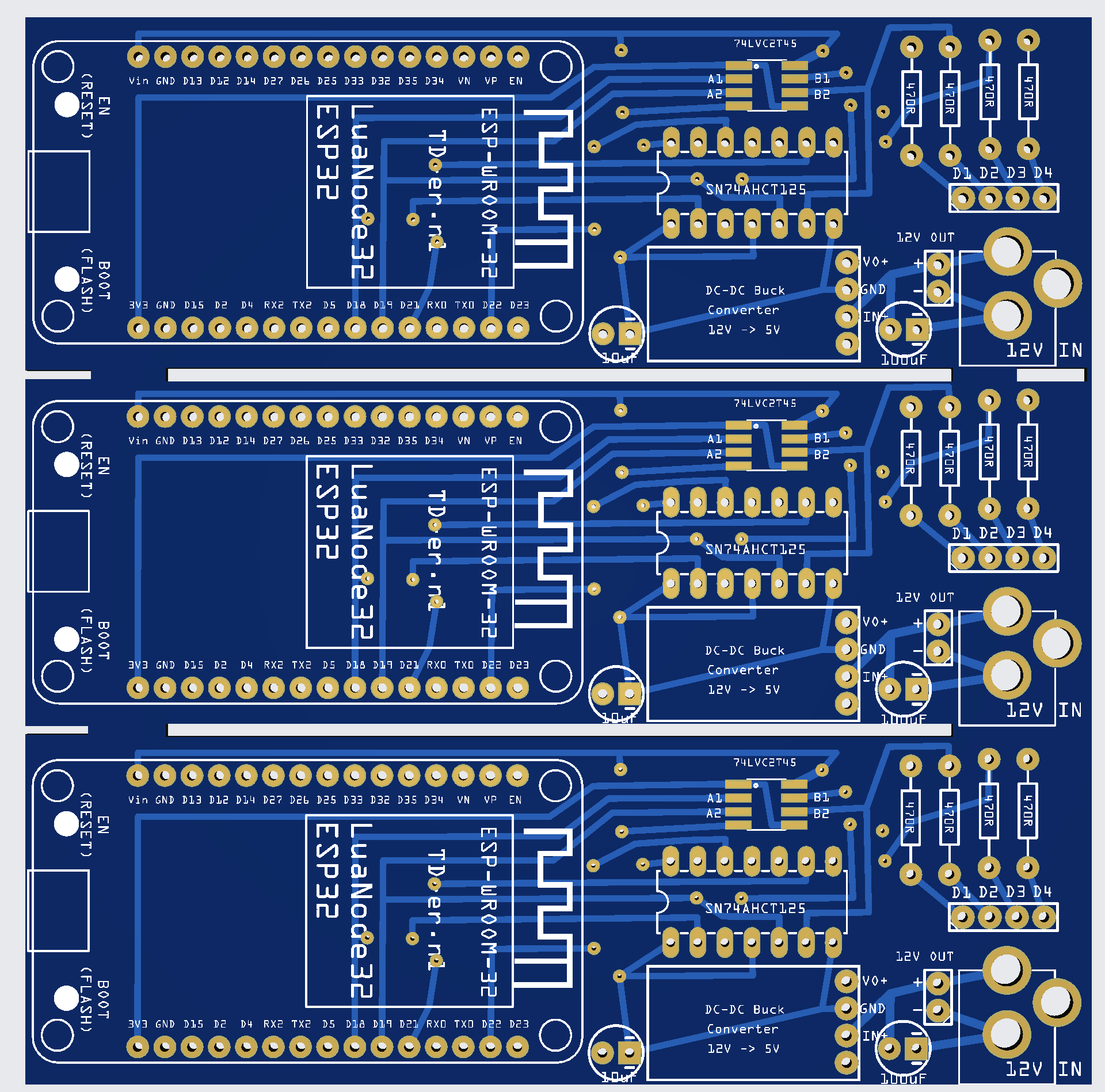

The standout feature of this design is its unique, dual-footprint output stage. The PCB accommodates two different industry-leading level shifters, allowing you to populate the board according to your project's specific needs—whether you require maximum channel count or prefer an alternative high-performance component.



Technical Design Advantages



This is more than just a controller; it's a versatile platform for serious LED enthusiasts.

  • User-Selectable Level Shifting (Install ONE only):

    • Option A (4-Channel): Populate with the SN74AHCT125N for up to four independent data outputs. This is the ideal choice for multi-zone projects or controlling multiple separate LED strips from a single board.

    • Option B (2-Channel): Populate with the SN74LVC2T45DCTR, a high-speed, dual-channel transceiver. This provides an alternative component choice for projects requiring two data lines, built on the same robust PCB foundation.

  • Full ESP32-WROOM-32 Integration: By using the full development board, this design simplifies programming and debugging with its built-in USB-to-serial converter. No external programmer is needed.

  • Robust 12V Power Architecture: Engineered specifically for 12V systems (like WS2815 strips), the schematic incorporates a high-efficiency step-down converter to create a stable 5V rail. This 5V rail cleanly powers the ESP32 (via VIN) and provides the correct voltage to the level shifters, ensuring a perfect 5V logic signal for flawless data transmission.

  • Superior Power Stability & Protection: Like our other pro designs, this board includes a large 1000µF/25V bulk capacitor to handle extreme current demands and a dedicated fuse holder for critical overcurrent protection, safeguarding your entire installation.

  • Intelligent GPIO Mapping: GPIOs are strategically routed to both level shifter footprints. The first two data channels are shared, ensuring functionality regardless of which IC is installed, while the additional two channels are exclusive to the 4-channel SN74AHCT125N option.
