PCB for Automated Roller Blinds using ESP32 C3 Mini Pro

Description

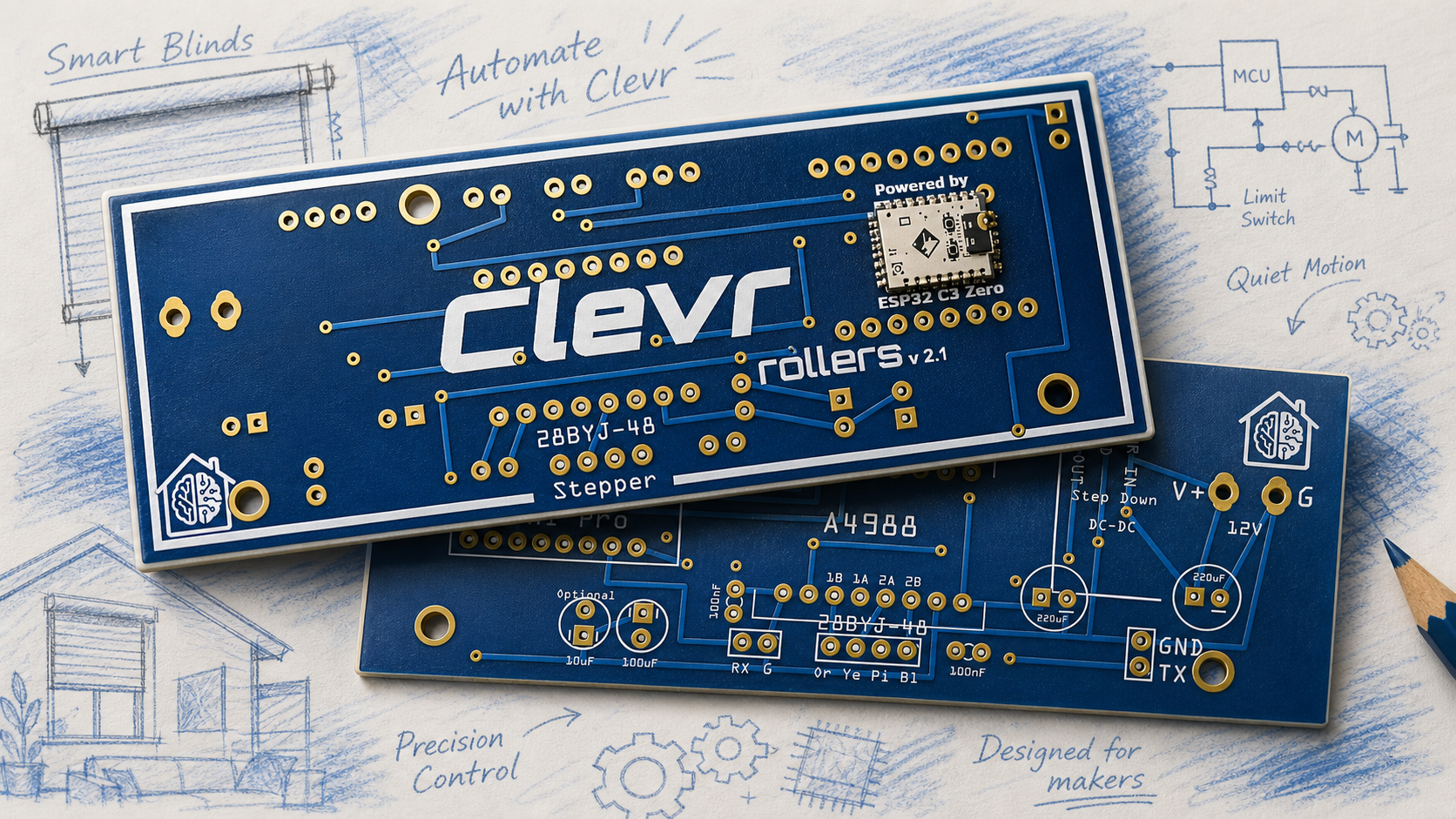

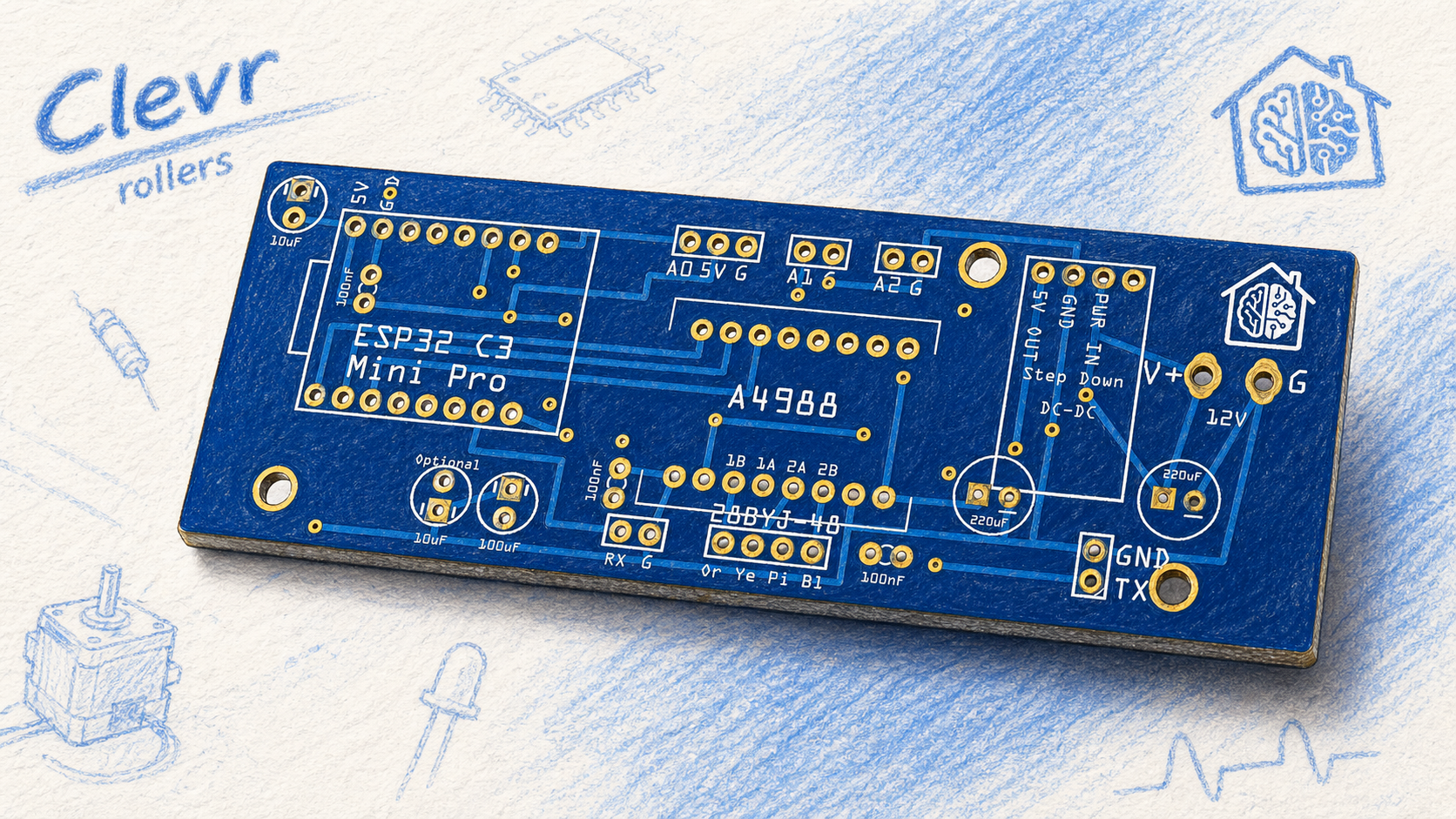

This is a custom PCB made to automate IKEA Fridans roller blinds. You can use it to automate any other brand of roller blinds just by modifying the 3D printed files that add the motor inside the roller barrel.

You can buy the PCBs straight from us, or you can purchase just the Gerber files (recommended if you are outside EU) and you can order your PCBs directly.

These boards are printed in sets of 3 boards. The standard and the most cheapest board to print is 100x100mm. So this was designed to fill the whole 100x100 board.

This board is an updated version of the PCB for Roller Blinds using ESP8266. This one has an additional DC-DC step down converter, to convert from 5V to 3V.

You can read more about this board in the Article that describes how to automate your IKEA Fridans roller blinds. And the integration details are included in the Schematic linked bellow.

The price is for 1 unit of the PCB.
