0.96" Inch OLED Display Screen Module I2C IIC 128x64 SS - D - 1306 3.3V-5V - Blue Yellow - for Arduino ESP32 ESP8266

White/blue/blue yellow 0.96 Inch OLED I2C IIC Display Module 12864 128x64 Pixel SSD1306 Mini Self-Luminous OLED Screen Board Compatible with Arduino Raspberry Pi

Features:

• 0.96 inch,Resolution: 128 x 64, View angle: > 160°, Support voltage: 3.3V-5V DC, Power consumption: 0.04W during normal operation, full screen lit 0.08W

• Embedded Driver IC: SSD1306. Communication: I2C/IIC Interface, only need two I / O ports

• It compatibles with Arduino Nano, R3 board and Mega, Raspberry pi, 51 MCU, STIM 32, etc.

• No backlight is required, and the display unit can be self-luminous. It has ultra-high contrast, bright and clear dots, and it is easy to read even small fonts

• There are no fonts embedded in the OLED controller, users can create fonts through font generation software.

Specification:

• OLED self-luminous, no backlight

• High resolution: 128x64 (same resolution as 12864, high PPI)

• Large viewing angle: greater than 160° (a screen with the largest viewing angle in the display)

• Ultra-low power consumption: normal display 0.06w (far lower than TFT display)

• Wide voltage power supply (3V~5V), compatible with 3.3V and 5V level logic, no need for level conversion chips

• The IIC interface only needs 2 IOs to light up easily

• Military-grade process standards, long-term stable work

• Provide rich multi-platform routines and provide underlying driver technical support

• Yellow blue, white, blue three color display scheme optional

the GND AND VCC begin pin will send randomly

Package include :

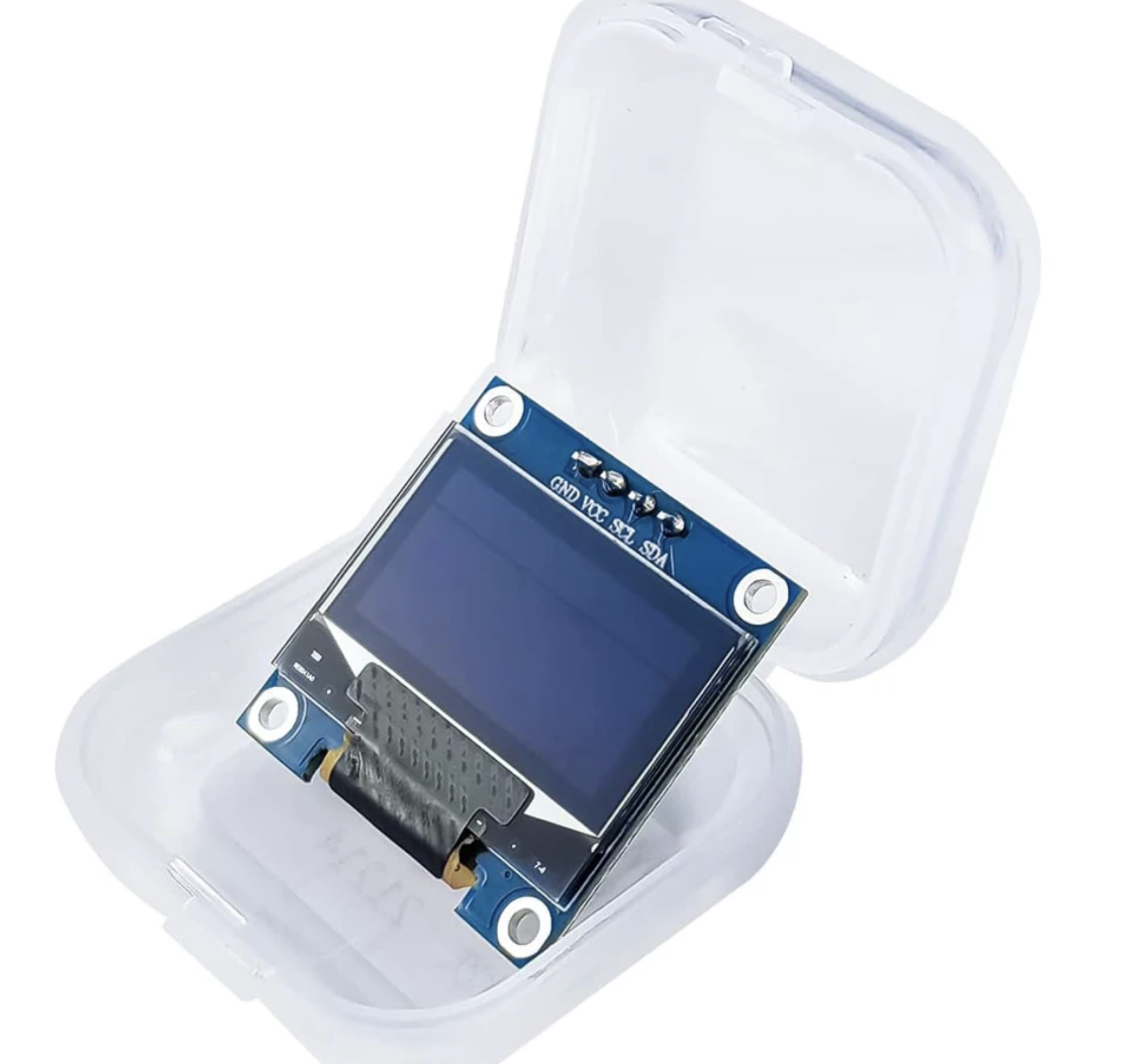

• 1 x 0.96 oled module(with protective box) Yellow / blue / white, blue
