D1 Mini LIVE ESP32 ESP-32 WiFi+Bluetooth Internet of Things Development Board

General

D1 Mini ESP32 WiFi + Bluetooth The D1 Mini ESP32 WiFi + Bluetooth can be described as the successor to the Wemos D1 Mini ESP8266.

The board features WiFi, Bluetooth, and Bluetooth LE, as well as more IO pins and improved analog inputs.

The ESP32 can be programmed using Arduino and MicroPython.

The D1 Mini ESP32 is recommended for more advanced users, as it is not yet supported by all Arduino libraries. The D1 Mini ESP32 is compatible with the Arduino IDE, Lua, MicroPython, and NodeMCU. Since the quiescent current of the ESP32 chip is less than 5 μA, it is particularly suitable for use with batteries. The ESP32 D1 Mini has a similar pin layout to the conventional D1 Mini ESP8266 and is therefore pin-compatible with most accessories for it.

Technical specifications:

Operating voltage via USB: 5V DC
Operating voltage: 3.3V DC
Dual-core Tensilica LX6 microprocessor
Up to 240MHz clock frequency
Module: ESP32-WROOM-32 / ESP32-WROOM-32D
Chipset: ESP32-D0WDQ6 / ESP32-D0WD
USB-TTL: CH9102X
GPIO: 32
ADC: 4
DAC: 1
BT v4.2 (BR/EDR/BLE)
Built-in PCB antenna
OM: 448 KB - SRAM: 520 KB
WiFi: 2.4 GHz
Integrated 802.11 BGN WiFi transceiver
Size: 39 mm x 31.36 mm
Weight: 12 g

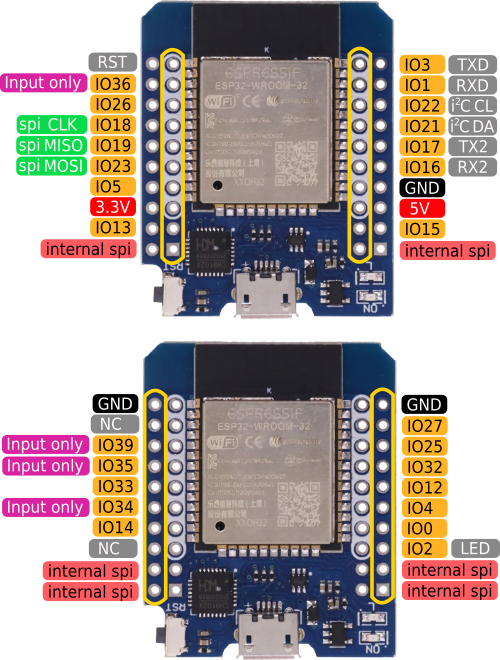

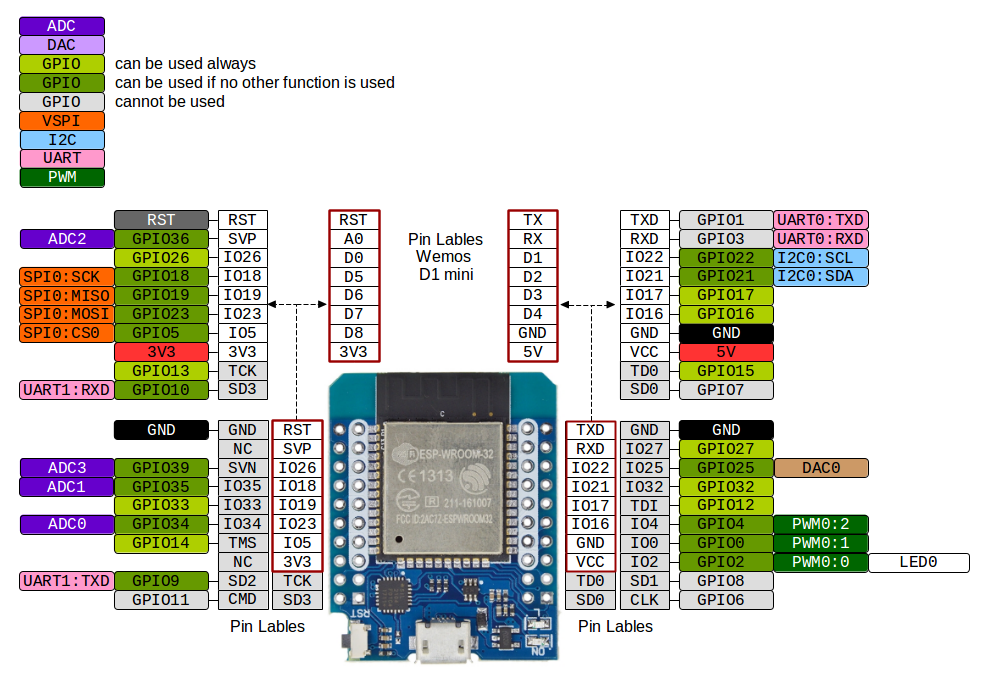

Pinout

Board dimensions
