Clevr DoorBell HV Kit
Overview
Clevr DoorBell HV — mains-capable smart doorbell controller. Basic: bare PCB. Full: PCB plus the complete component set.
What's Included
-
View Details
Clevr DoorBell HV
Quantity: 1
Bundled with Full & Premium tiers
These passive components are included with Full and Premium kits. Basic kit buyers will need to source them separately.
-
More Info
100R 1206 resistor x2
-
More Info
100uF 10V electrolytic
-
More Info
10k 1206 resistor x4
-
More Info
10uF 6.3V X5R ceramic
-
More Info
1k 1206 resistor x4
-
More Info
1x8 2.54mm male header x2
-
More Info
2.2k 1206 resistor x2
-
More Info
470uF 10V electrolytic
-
More Info
50V 100nF monolithic ceramic capacitor x5
-
More Info

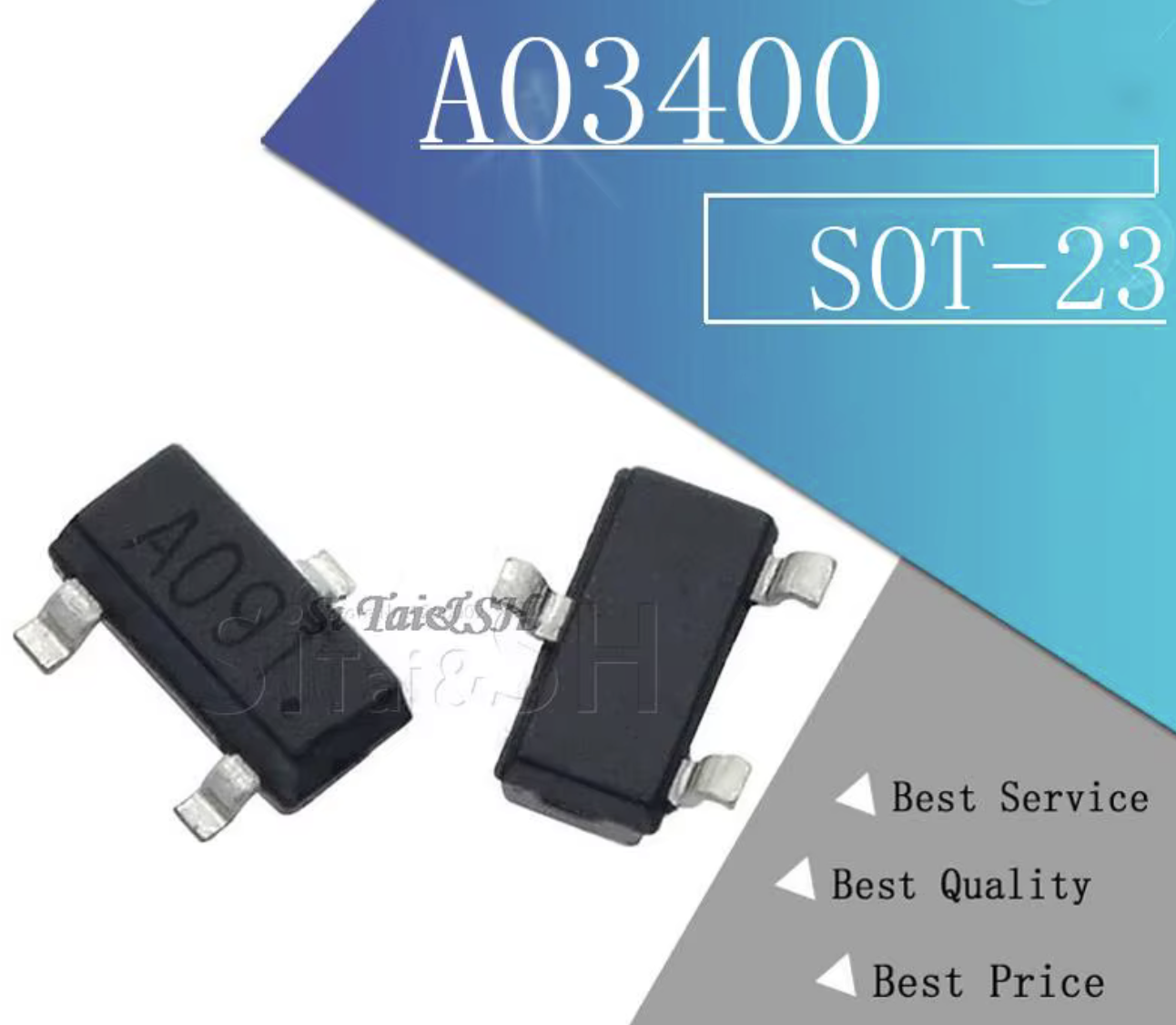

AO3400 x2
-
More Info
DG128-5.08 2-pole terminal x5
-
More Info
DIN enclosure 2M/3M
-
More Info
HF41F/5-ZST relay 5V SPDT x2
-
More Info
High-efficiency LED 3/5mm x5
-
More Info
JST-XH 10-pin keyed connector
-
More Info
LED harness 5x panel LED
-
More Info
PESD3V3L1BA TVS SOD-323
-
More Info
S14K275 MOV 275VAC
-
More Info
Single Row Female Pin Header 8P for PCB x2
-
More Info
SS14 Schottky SMA x2
-
More Info
T1A 250VAC TR5 slow-blow fuse
You'll Also Need
These parts are required to build the board but are not included in any kit tier — please order them separately.
