IR LED Blaster - PCB + Schematics
What's in this Kit?
All our Kits bundle physical components with full digital access to the related Schematic files (code, Gerbers, 3D models, documentation). Choose the tier that fits your needs:
- Basic Kit: Includes the essential physical PCB(s) for the project, plus full digital access to all schematic files. You source all other components yourself.

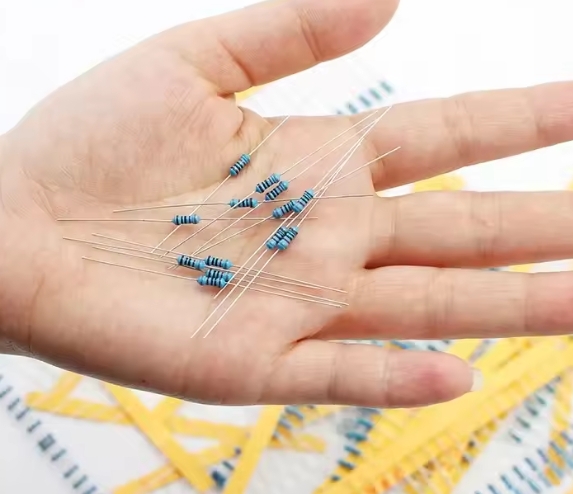

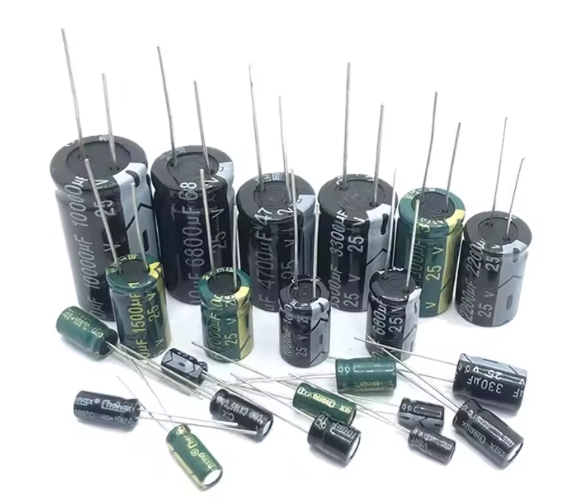

- Full Kit: Includes everything in the Basic Kit, plus all the necessary passive components like capacitors, resistors, connectors, etc., listed in the Bill of Materials.
- Premium Kit: Includes everything in the Full Kit, but comes pre-soldered for your convenience.
Optional Add-on: 3D Printed Enclosure
For any kit tier, you can choose to add the physical 3D printed enclosure. We'll print the parts from the included STL files for you. This is priced separately based on the print size and complexity.
ESP32-C3 IR Blaster for Home Assistant
Take a look at your coffee table. How many remote controls do you see? There’s one for the TV, one for the soundbar, another for the streaming box, and maybe a fourth for the air conditioning unit. It’s a frustrating juggling act we’ve all come to accept—the endless search for the right remote, the clutter, and the inconvenience.
Take full control of your home entertainment and climate systems with this powerful, custom-designed IR Blaster for Home Assistant. Built around the versatile ESP32-C3 Super Mini Pro, this PCB is the ultimate solution for integrating any infrared-controlled device into your smart home ecosystem.

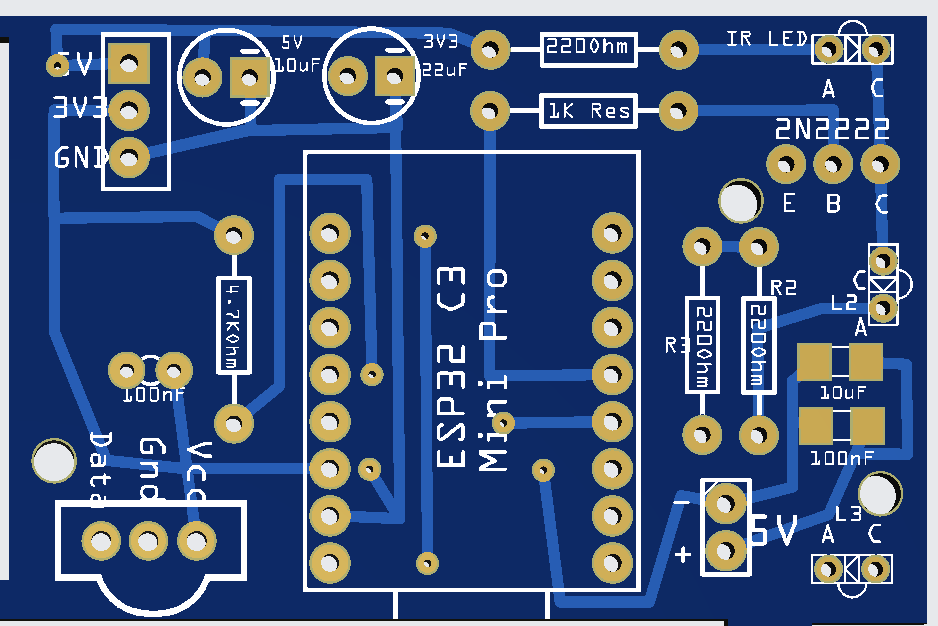

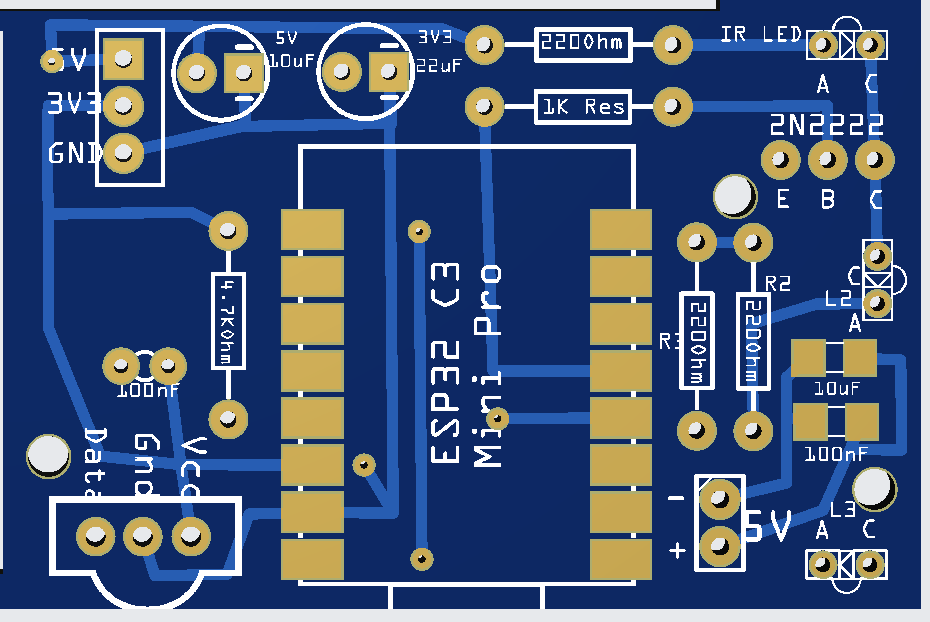

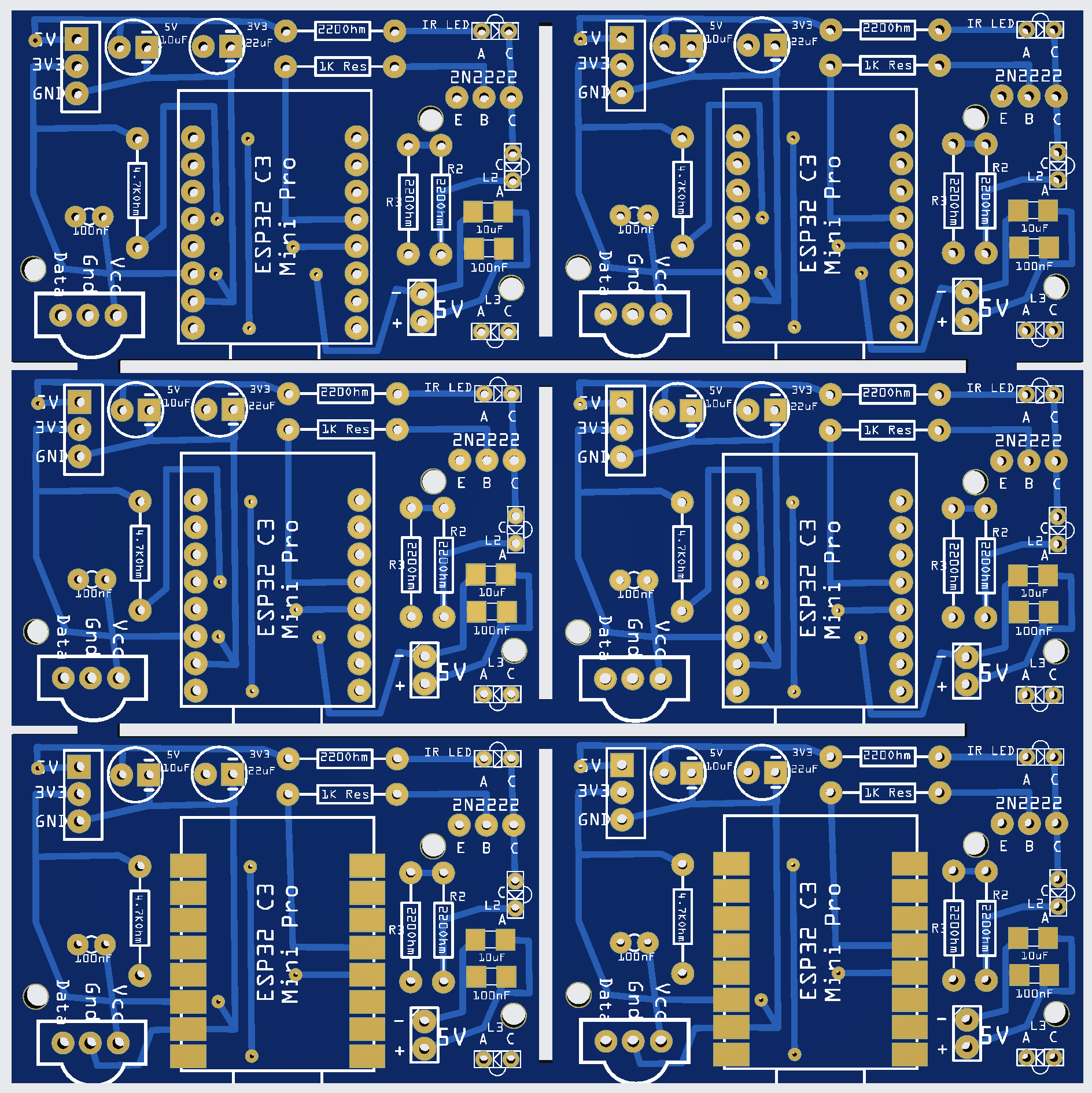

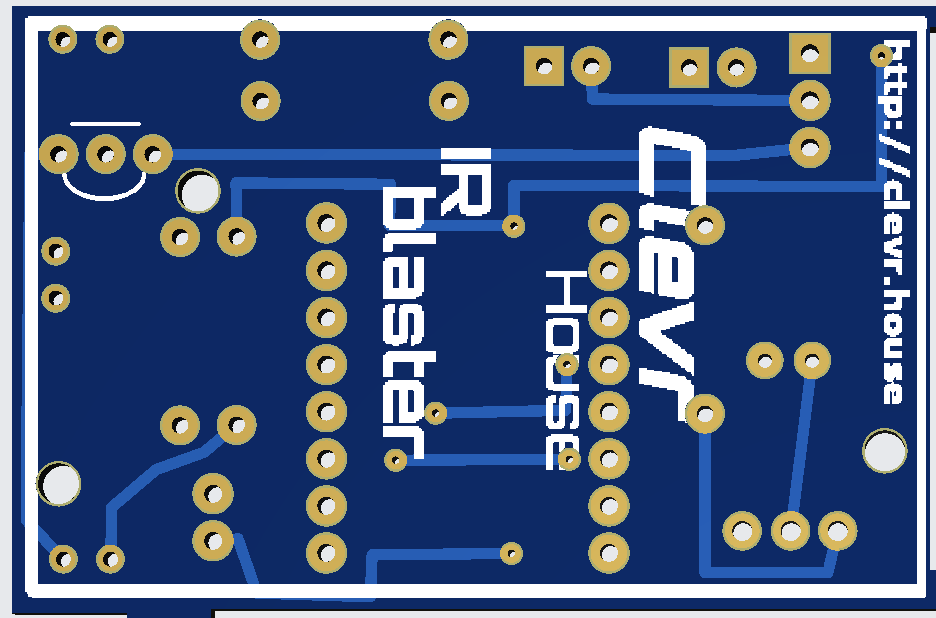

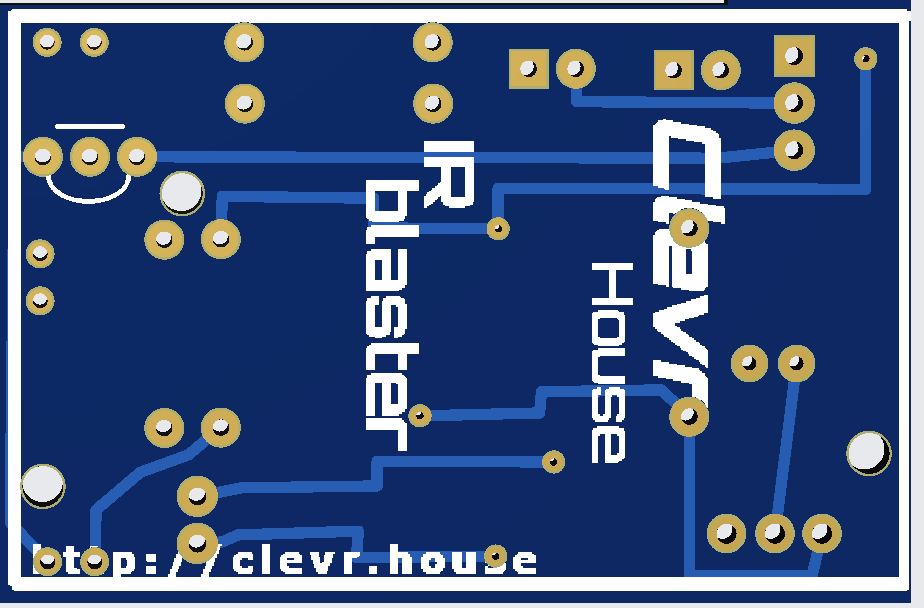

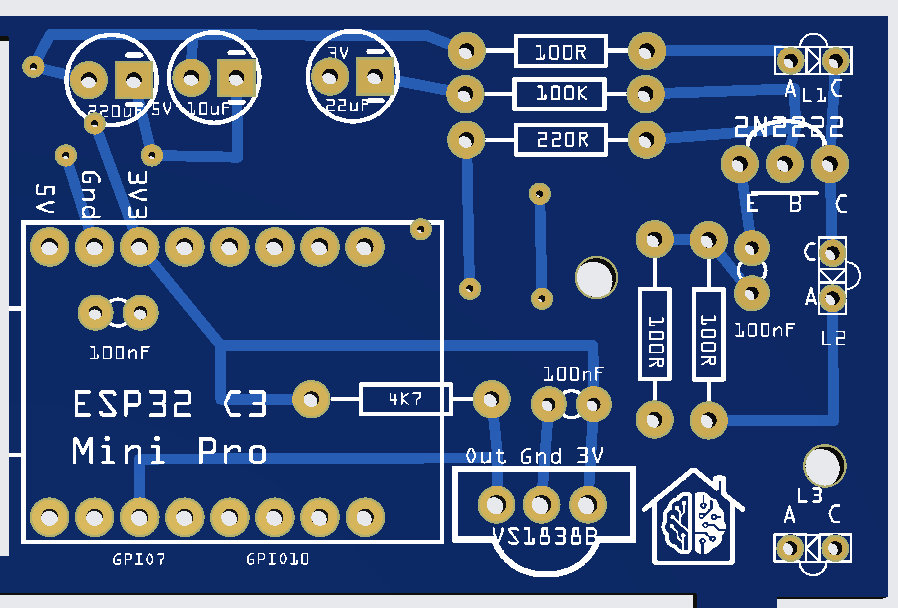

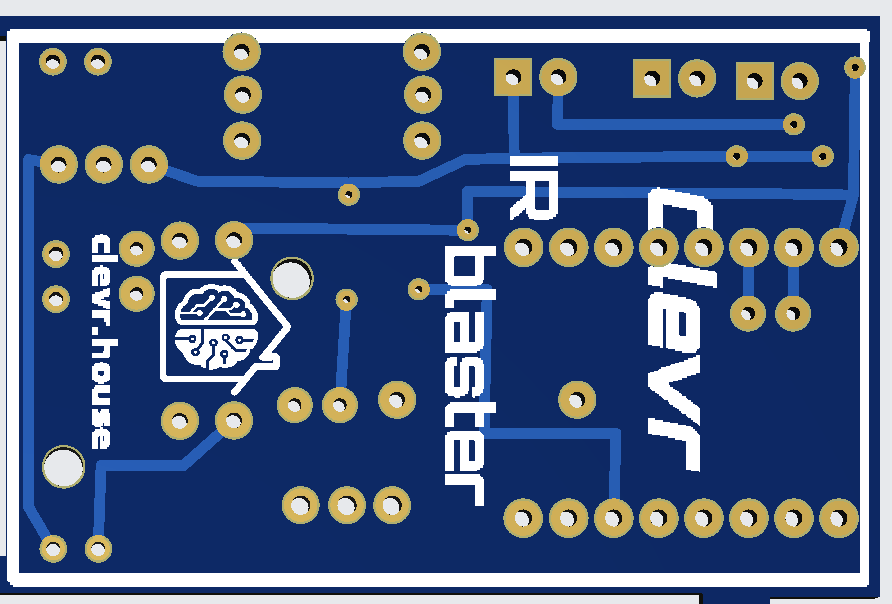

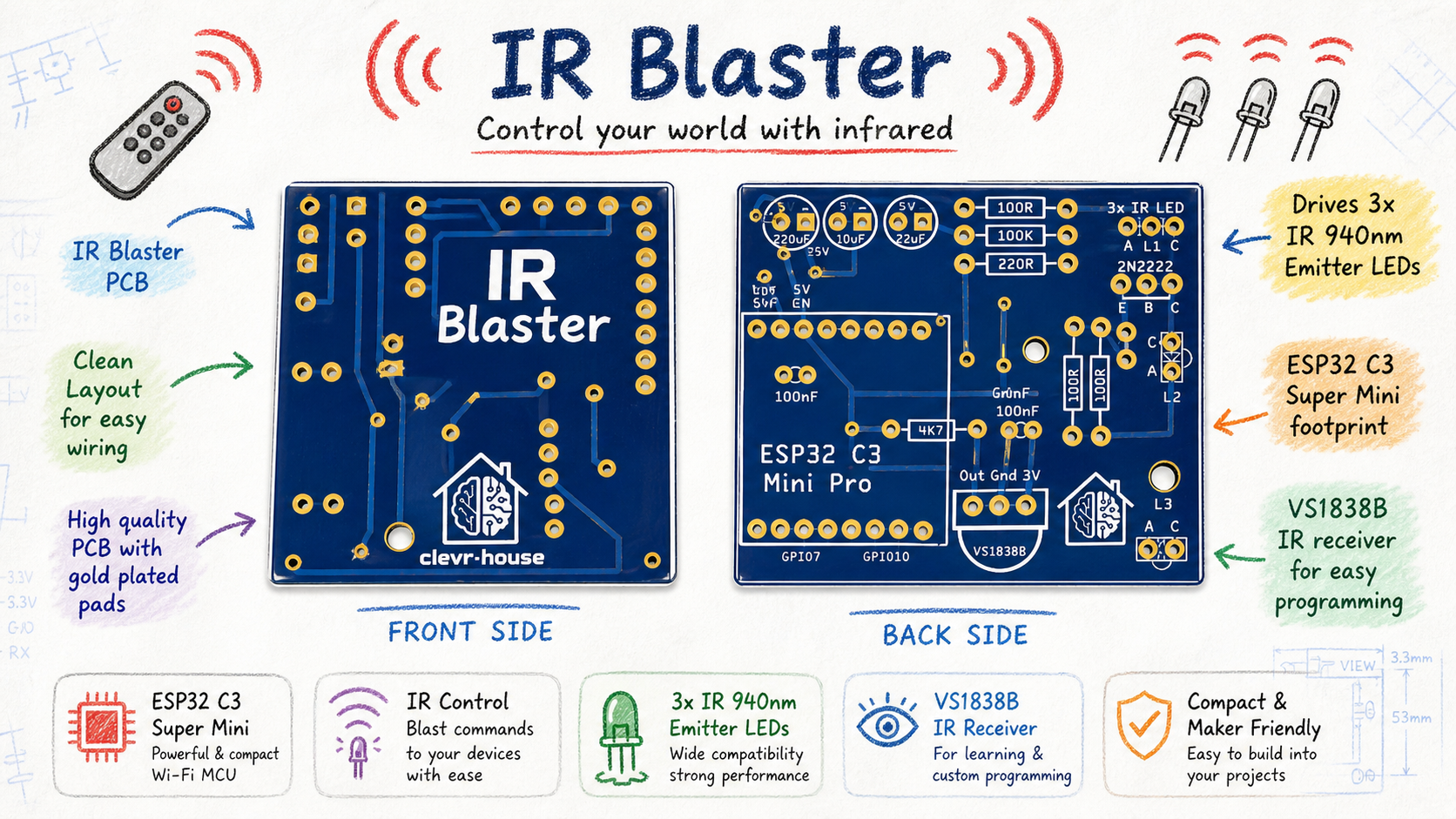

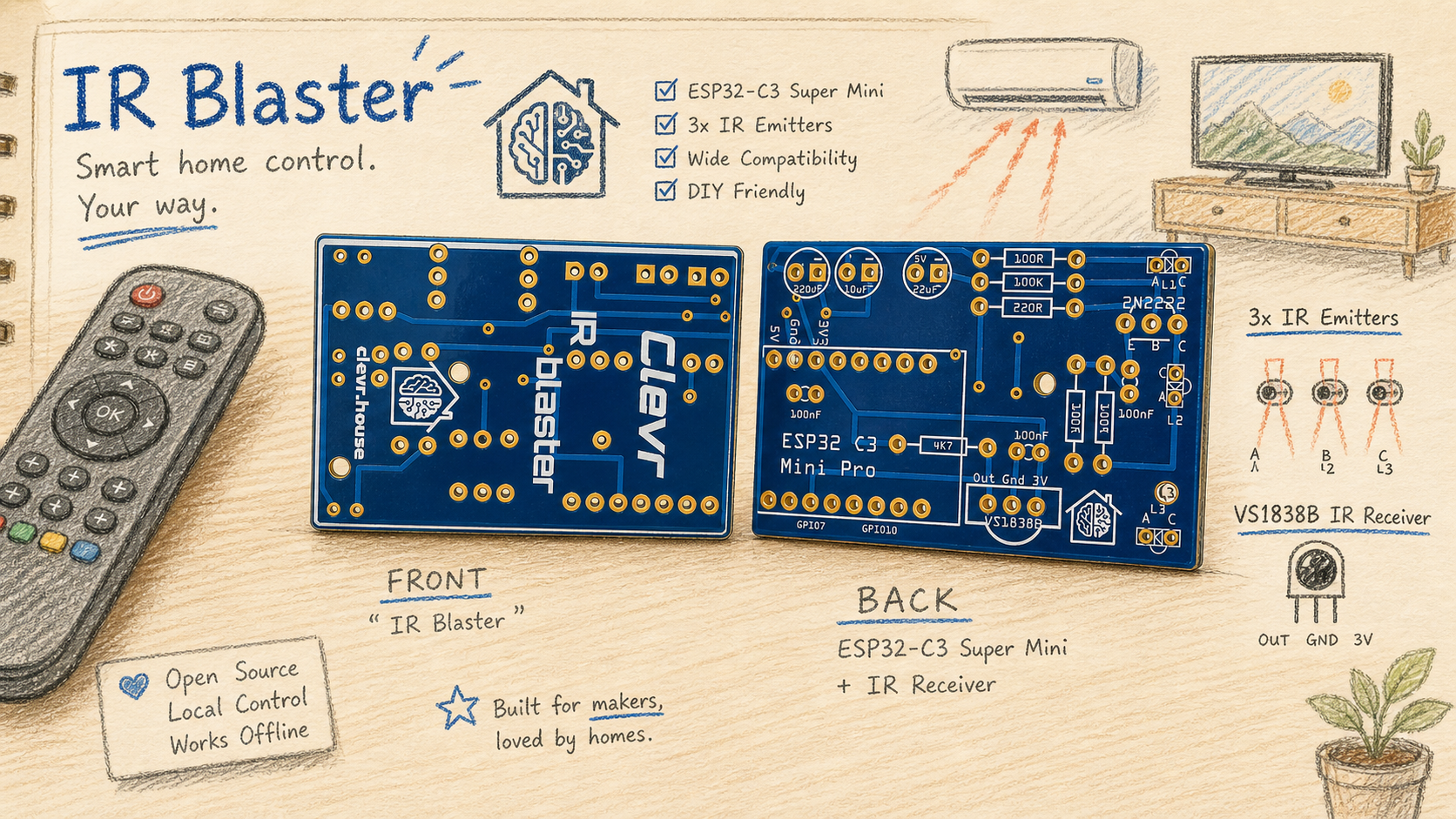

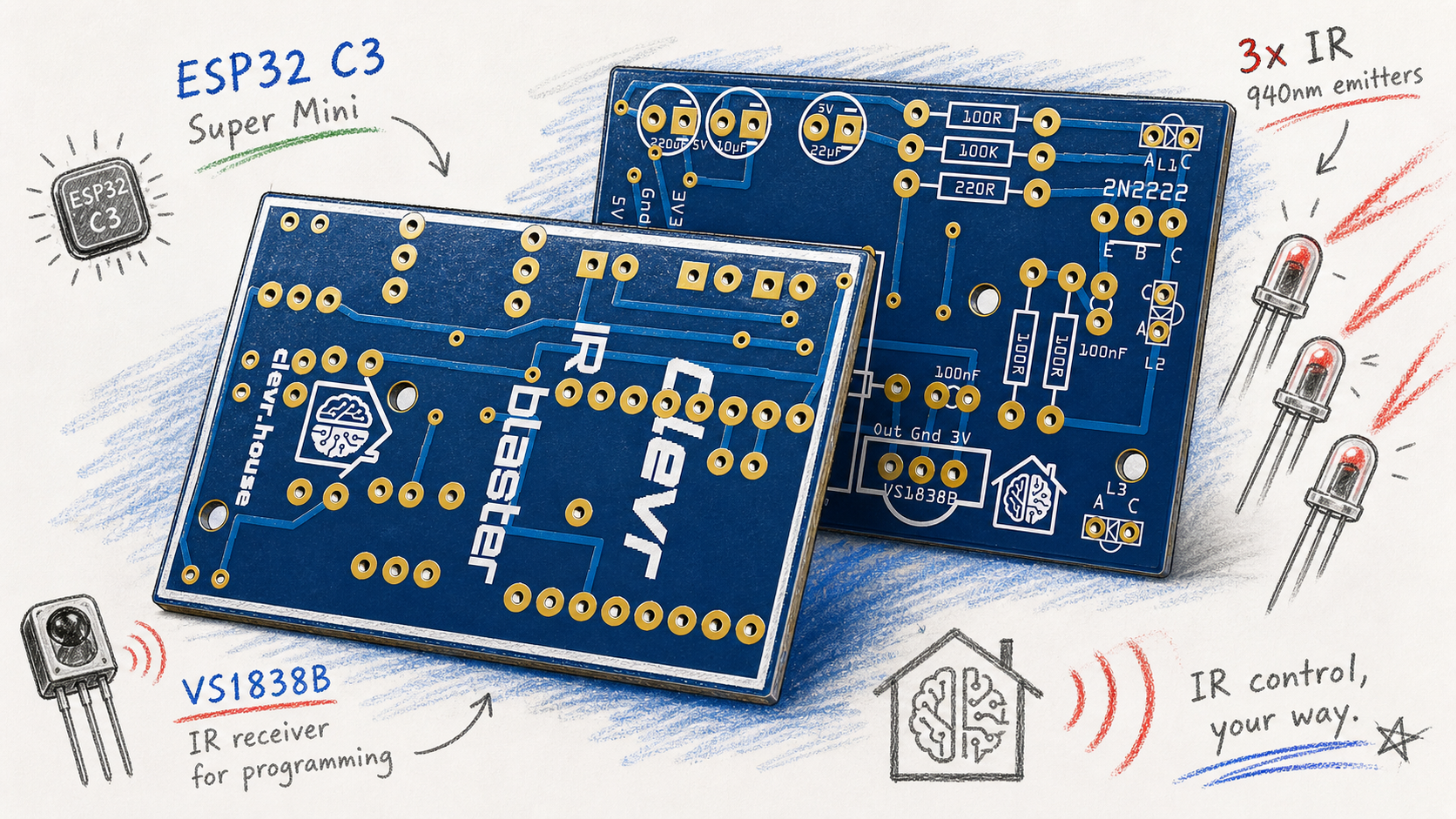

This Kit includes 1 x IR LED Blaster SMD PCB, 1 x IR LED Blaster THT PCB and also access to the corresponding Schematics page where you have the code and also the Gerber files with which you can order directly your own PCBs.
Kit Contents Overview
-
View Details →IR LED Blaster THT
Quantity: 1
